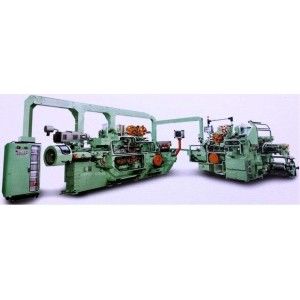

Medium-Speed Automatic Cigarette Packing Machine GDX1 For Soft Packet

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  Medium-Speed Automatic Cigarette Packing Machine GDX1 For Soft Packet

Product Details:

Place of Origin: China
Brand Name: BINHAO
Certification: CE
Model Number: GDX1

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Floor Area:7300mm × 7600mm
Delivery Time: 30Works Dates
Supply Ability: 200 Sets per Month
Detailed Product Description
Color: Green Weight: 9370kg
Power: 19.1kw Production Capacity: 400 Packets/min (40 Cartons/min)
Loading Port: Huangpu,Guangzhou Warranty: 1 Year
Condition: In Iew Automatic Grade: Automatic
Noise Level: ≤85 DB(A) Floor Area: 7300mm × 7600mm
Port: Huangpu,Guangzhou
High Light:

Auto Cigarette Packing Machine

,

Cigarette Packing Machine for Soft Packet

,

Medium Speed Cigarette Packing Machine

GDX1 Cigarette Packing Machine For Soft Packet        Medium-Speed Automatic Cigarette Packing Machine GDX1 For Soft Packet 0Medium-Speed Automatic Cigarette Packing Machine GDX1 For Soft Packet 1





Introduction:



GDX1 Cigarette Packing Machine is also a medium-speed model, capable of producing 400 soft packets per minute. It was developed on the basis of X1SC/4350/PACK-OW, which technology was introduced through the Technology Transfer Agreement between G.D, and China National Tobacco Corp. It consists of an YB15 Tray Feeder, an YB25 Cigarette Soft Packer, an YB55 Cellophaner, an YB65 Cartoner and an YB95 Overwrapper.





Features:



The entire working process, from cigarettes feeding to carton overwrapping, is completed automatically without any manual contact. The settings of machine operation, quality control, shift reporting, enhanced stoppage analysis, machine status, diagnostics and system calibration are achieved entirely digitally by the brand new MICRO-II system with integrated touch screens.



GDX1 won the third prize at the Technology and Improvement Competition by State Tobacco Monopoly Bureau in 1998.





Technical Data:



Production Capacity: 400 packets/min (40 cartons/min)



Cigarette Specifications



Diameter φ7.8mm
Length 84mm
Cigarette Collation: 7-6-7

Packet Dimension: 86mm ×54.5mm ×22.5mm



Stamp Specifications



Width: 19mm ~23mm
Length: 42mm~50mm

Carton Dimension: 274mm × 87.5mm × 46.5mm



(American and European style)



Noise Level: ≤85 dB(A)
Power: 19.1kw
Weight: 9370kg

Floor Area: 7300mm × 7600mm



(All the products specification can be configured upon customized requirements.)
